The Complete
Printed Circuit Board Service Bureau

DESIGN AND LAYOUT SERVICES

DESIGN & LAYOUT

Services

  • PCB Layout
    (Cadence Allegro, Altium, Mentor)
  • Schematic Capture
  • Netlist Input
  • Netlist Conversions
  • Auto and Interactive Routing
  • Thermal Analysis
  • Signal Noise Analysis
  • Line Characteristics Analysis
  • Test Points Creation
  • PCB Data Base Conversions
  • GERBER to CAD Regeneration

Supplying

  • Complete CAD Data Base
  • Gerber Files
  • ODB++
  • NC Drill Tapes
  • Full Fabrication and Assembly Documentation
  • Standard & Customized Reports
  • Input to Automatic Assembly & Test Equipment
  • Laser Plotted Artwork
  • Prototype Manufacturing
  • Prototype Assembly

Technologies

  • Multi Layer
  • Double Sided
  • Surface Mount Technology
  • Multichip Module
  • Blind/Buried Vias
  • Flexible/Rigid Boards
  • Fine Line

Largo’s Key Advantages

  • Complete Turnkey Capability
  • Fast Turnaround Time
  • Expert and Experienced Designers
    Specializing in the Latest and Most
    Advanced PCB Technologies
  • Accurate, Reliable and Dependable Service
  • Competitive Price

Please enter your name and email address to gain access to the datasheet


    Category

    Commercial
    (IPC-2221)
    Military
    (MIL-STD-275F)
    Power Supplies
    High Speed Digital
    Mixed Signals
    Back Planes
    RF
    Analog / Low Voltage

    OUR APPROACH

    Rule Driven Design for Performance and
    Signal Integrity

    Printed Circuit Boards are becoming denser, signal frequencies are higher with switching times shorter. To ensure proper performance of the final product these issues receive special and professional care:

    • Board Materials
    • Layers Order and Line Distribution and Topology
    • Impedance Control (Single Ended and Differential)
    • Routing Sequence
    • Termination
    • Cross Talk Avoidance
    • Shielding
    • Signal Length Control and Matching
    • Decoupling

    Design For Manufacturability (DFM)

    Special attention and extensive effort is dedicated, through the design, to details that effect the board manufacturing and assembly cost:

    • Reduce Number of Layers
    • Reduce Number of Vias
    • Reduce Number of Hole Sizes and Via Types
    • Accurate Land Pattern Generation
    • Parts Placement and Routing Appropriate to the Assembly and Reflow Methods Used
    • Ongoing Cooperation with the selected board Manufacturer
    FAQ

    Layout Samples

    Check out the sample boards designed by Largo.

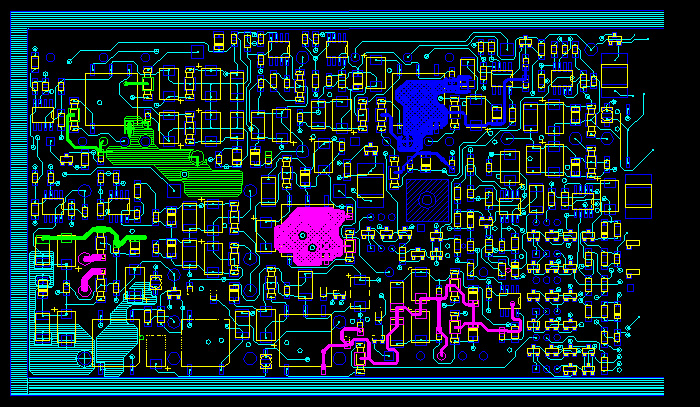

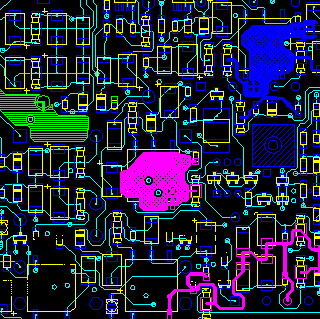

    ANALOG

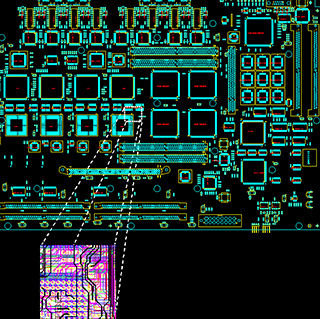

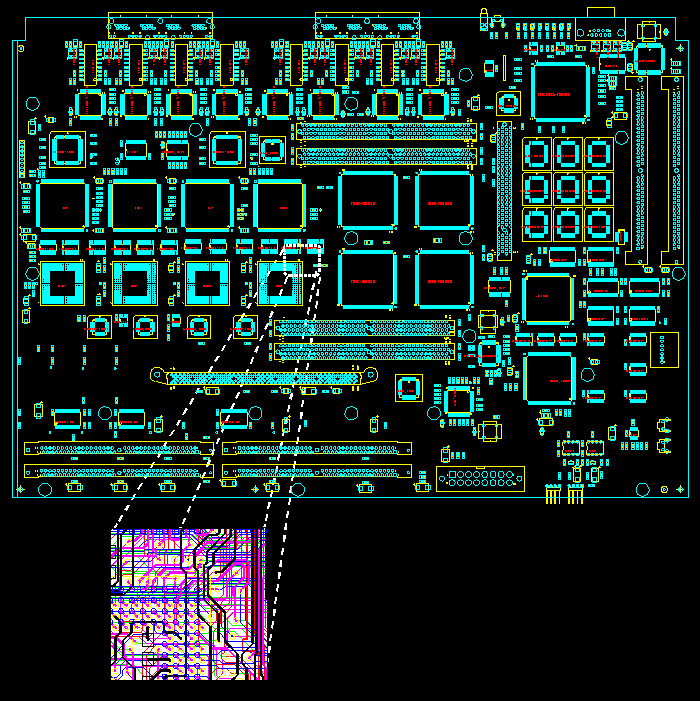

    HIGH SPEED DIGITAL

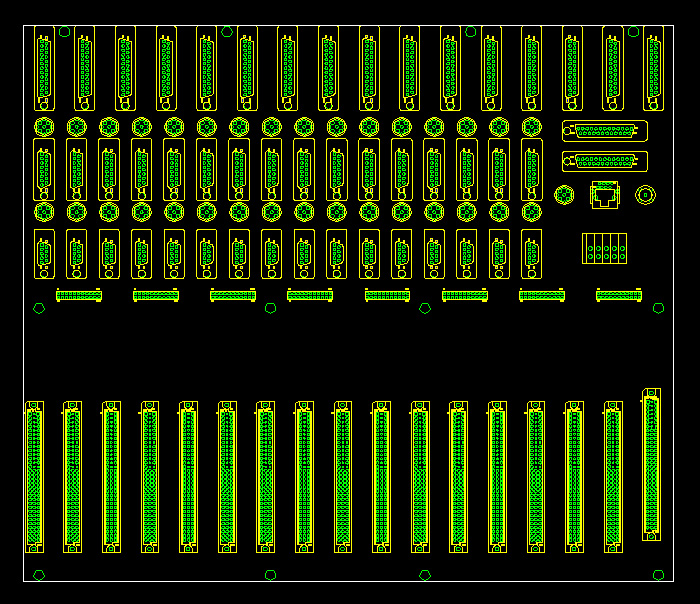

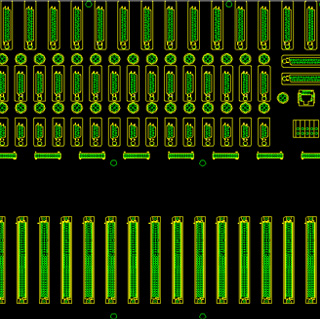

    BACKPLANE

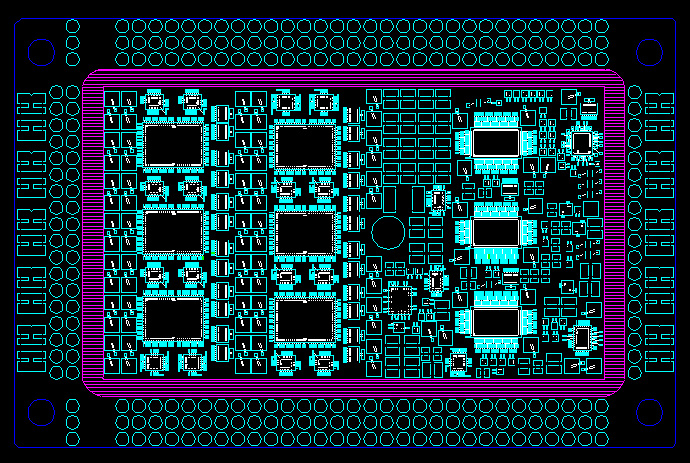

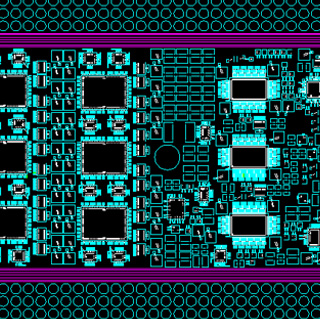

    MCM

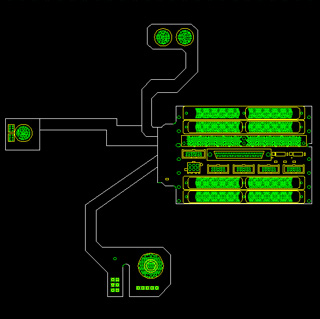

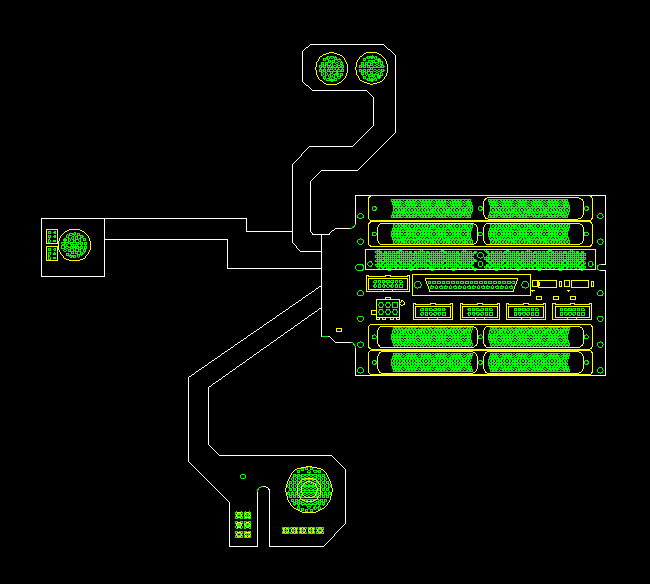

    FLEX CIRCUITS

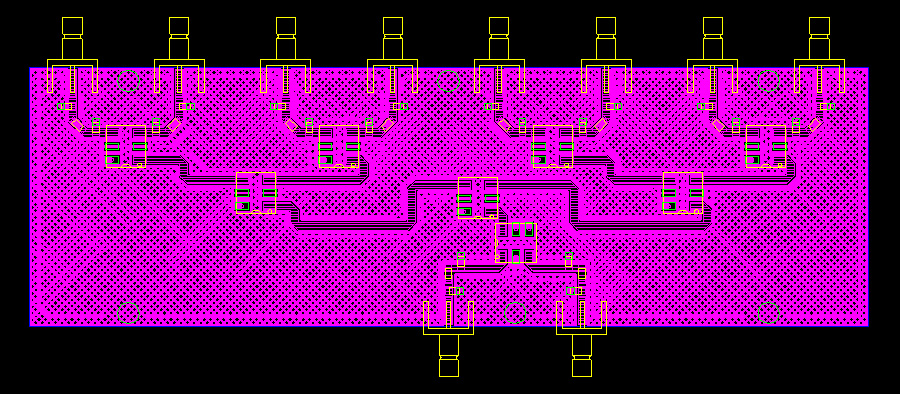

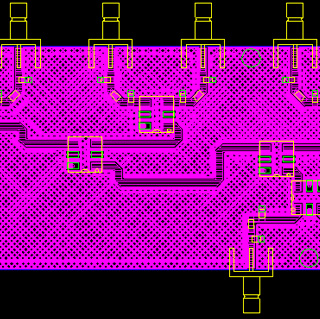

    RF

    Start a design project

    Request A Quote Contact
